DIY Attached Pergola Kit with Canopies, Up to 24 x 24 ft

Fit & Installation

• Layout: House-attached pergola with six posts and four canopy blocks, sized up to 24 x 24 ft.
• Bracket options: Choose 4x4 or 6x6 brackets.
• Purchase separately: Lumber and anchoring hardware for the post base brackets and wall mount brackets are not included and must be purchased locally.
• Screws included: The kit includes stainless steel #12 wood screws. These do not replace the separately required anchoring hardware.
• Canopy sizing: Canopies measure 4 inches shorter than their stated sizes to allow room for mounts and straps.

About This Pergola Kit

• Type of Pergola: Attached to house (6 posts)
• Size of Pergola: 4 blocks (any size up to 24' x 24')
• Bracket Size: Your choice of 4x4 brackets or 6x6 brackets
• Roof Style: Shade canopies (from 8x8 to 12x12)
• Warranty: 5-year warranty on brackets, 1-year warranty on shade canopies

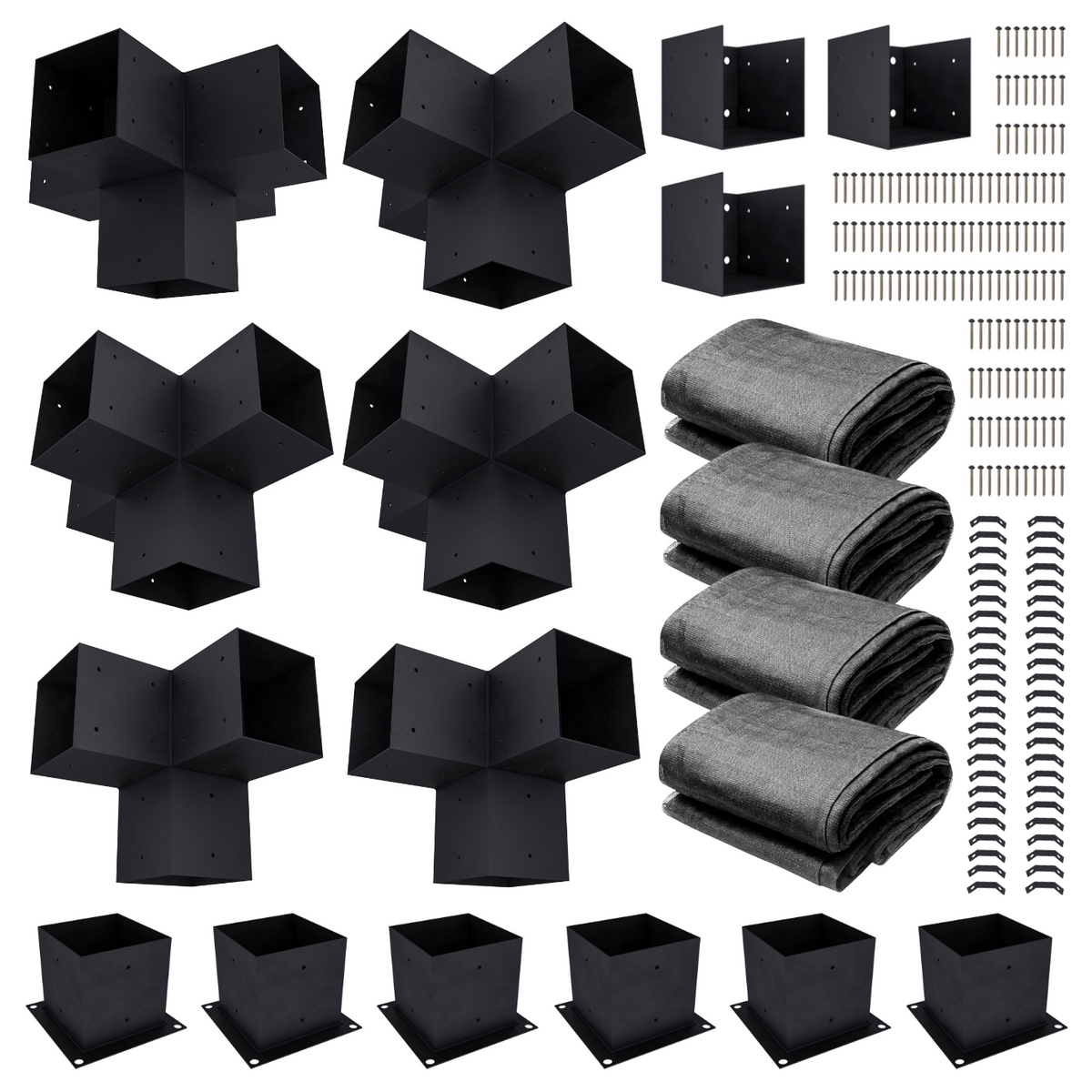

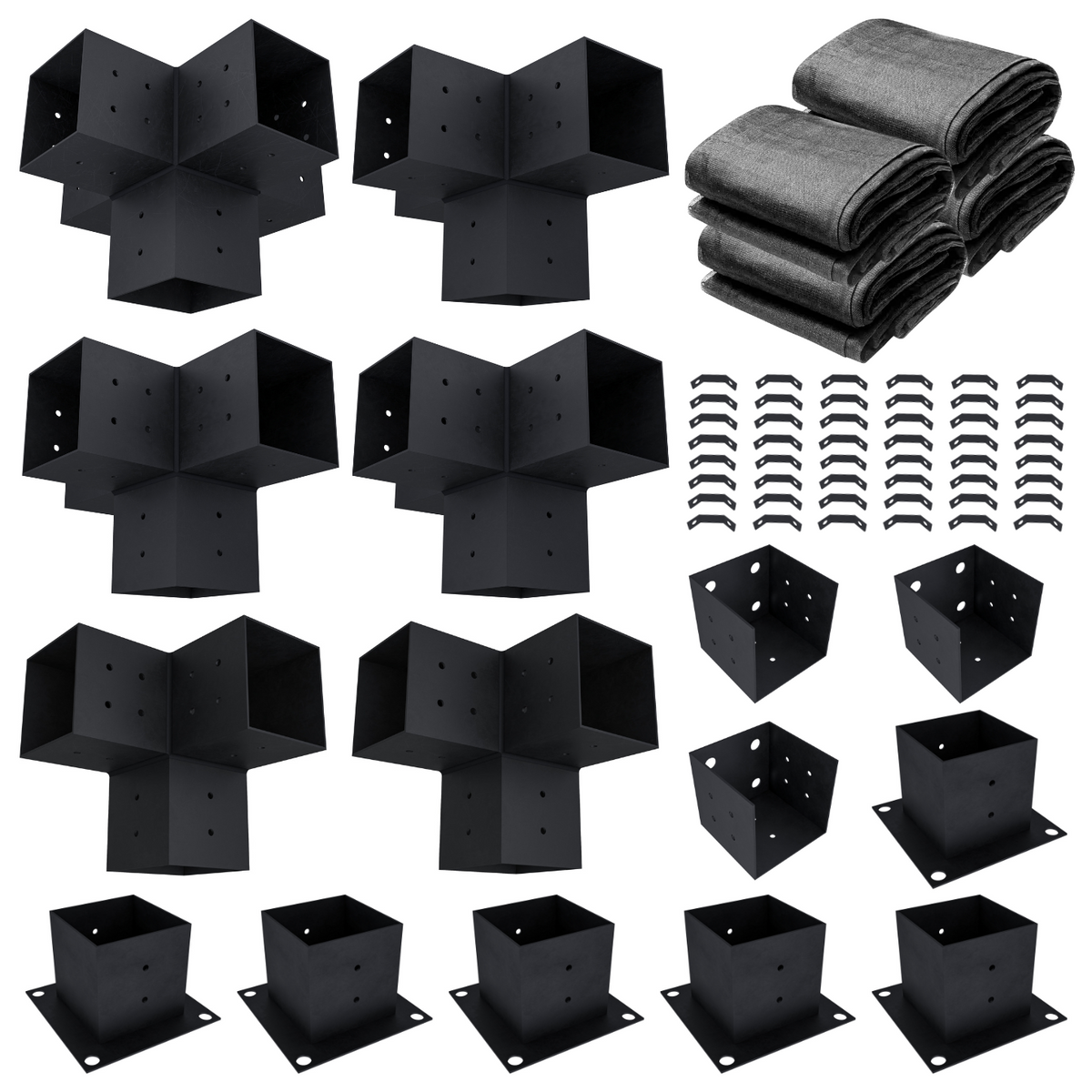

Pergola Kit Components

• 6x post base brackets
• 3x wall mount brackets
• 2x corner 3-arm brackets
• 3x middle 4-arm brackets
• 1x central 5-arm bracket
• 4x shade canopies (plus mounting brackets)
• Stainless steel #12 wood screws

Note: Lumber (wood) and anchoring hardware for anchoring the post base brackets and wall mount brackets are not included and will need to be purchased locally. Screws are included in the kit.

About Zen Pergola Brackets

• Made to fit common lumber sizes (4x4s, 6x6s, 2x4s and 2x6s)
• Made with premium 12-gauge (6x6 size) or 14-gauge steel (all other sizes)
• Laser-cut and laser-welded
• Premium weather coating to withstand extreme conditions
• Pre-drilled holes for securing wood & accessories
• Shipped direct to your doorstep from Boise, Idaho
• Backed by a 5-year warranty

About Zen Shade Canopies

• Made of fade-resistant 180 GSM High-Density Poly-Ethylene (HDPE) knitted fabric
• Your choice of 6 sizes: 8x8, 8x10, 8x12, 10x10, 10x12 or 12x12 (note: canopies actually measure 4 inches shorter than indicated to allow room for mounts & straps)
• Blocks up to 95% of harmful UV rays
• Semi-permeable to prevent rain from pooling on top
• Each side has 4 straps to keep the canopy tight and prevent drooping
• Includes mounting brackets & screws to secure straps to the pergola's corner brackets and roof beams
